Industrial Valves

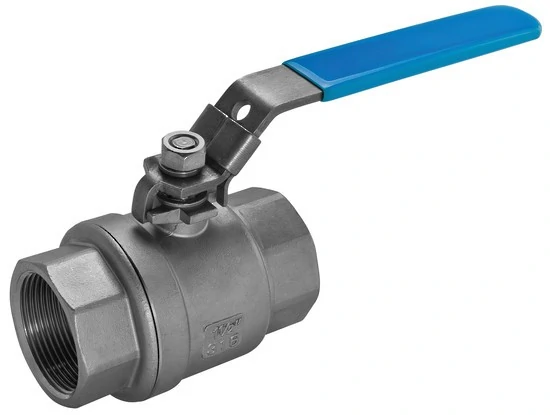

Screwed 2 Piece Ball Valve
Material: ASTM A351 - CF8MBall: ASTM A351 - CF8MSeats: PTFETemperature Rating: Up to 190cPressure Rating: 1000 PSI (69 BAR)
Size Options: 1/4" to 3"*Full bore*Lockable lever*Blow-out proof stem
3 Piece Ball Valve
Material: ASTM A351 - CF8MBall: ASTM A351 - CF8MSeats: PTFE
Temperature Rating: Up to 190cPressure Rating:1000 PSI (69 BAR)
Size Options: 3/8" to 3"*Full bore
*Lockable lever
*Blow-out proof stem

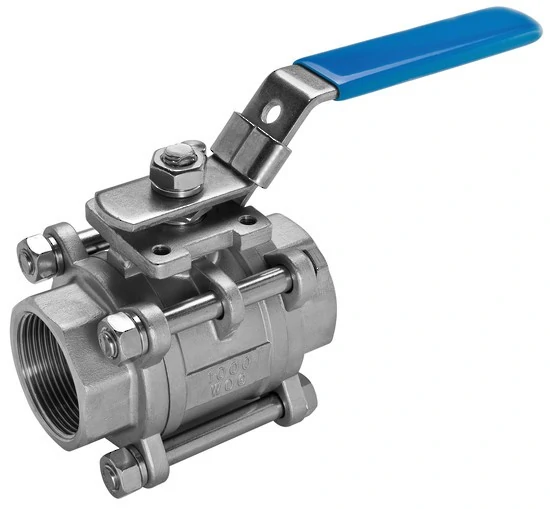

3 Piece Ball Valve With Iso
Material: Stainless 316Ball: Stainless 316Seats: PTFETemperature Rating: Up to 190cPressure Rating:1000 PSI (69 BAR)
Size Options: 3/8" to 3"*Full bore*Lockable lever*Blow-out proof stem
*ISO 5211 mounting pad

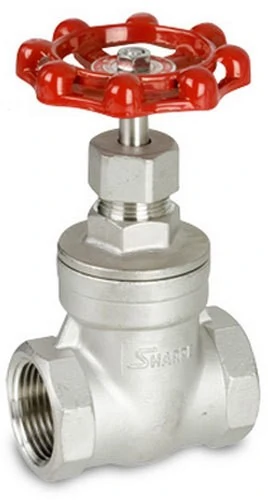

Stainless Screwed Gate Valve
Body Material: Stainless 316
Operating Temperature: Up to 120c
Pressure Rating: 200 PSI (14 Bar)
Size Options: 1/2" to 2"Stainless Stem & DiscPTFE Gasket & Packing

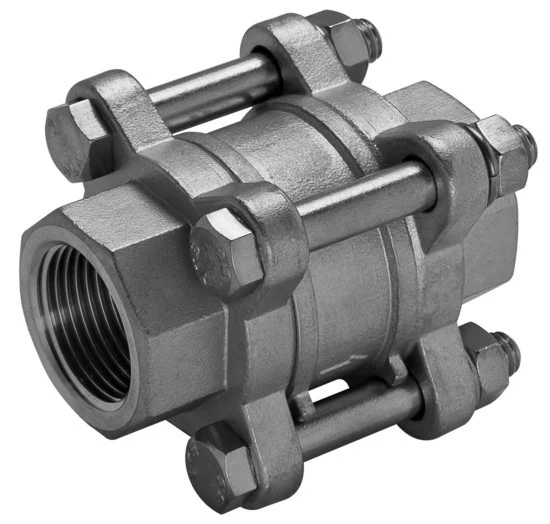

Stainless 3 Piece Screwed Check Valve
Body Material: Stainless 316Operating Temperature: Up to 120cPressure Rating: 200 PSI (14 Bar)Size Options: 1/2" to 4"Stainless 316 Disc

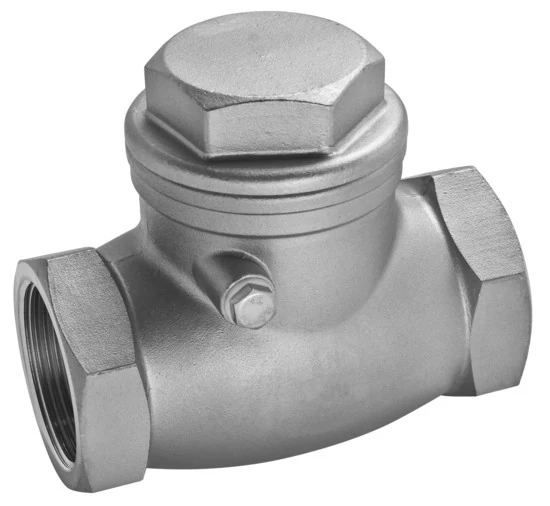

Stainless Swing Check Valve
Body Material: Stainless 316Operating Temperature: Up to 120cPressure Rating: 200 PSI (14 Bar)Size Options: 3/8" to 3"Stainless 316 Disc

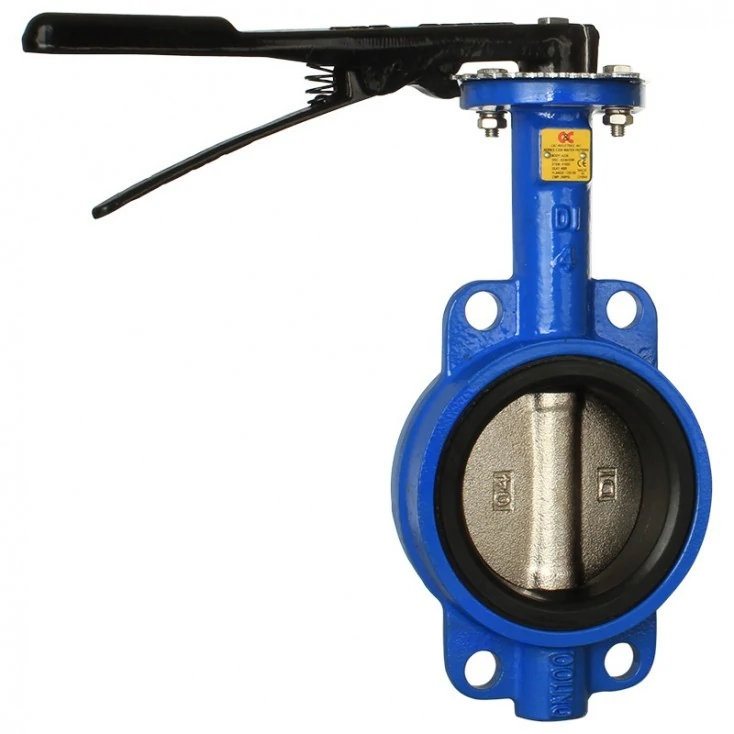

Cast Iron EPDM Wafer Lever Butterfly Valve
Body Material: Cast Iron
Operating Temperature: Up to 120c
Pressure Rating: 232 PSI (16 Bar)
Size Options: 2" to 8"Stainless Stem & DiscEPDM Seat
TABLE D/E & ANSI 150
ISO pad and square stem up to 12"

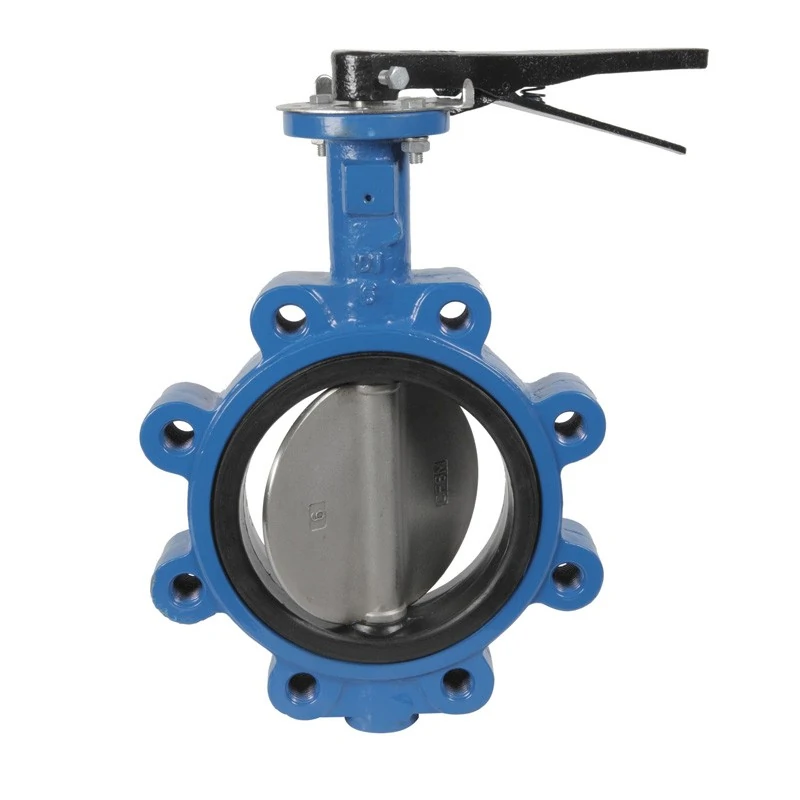

Cast Iron EPDM Lugged Lever
Butterfly Valve
Body Material: Cast IronOperating Temperature: Up to 120cPressure Rating: 232 PSI (16 Bar)Size Options: 2" to 8"Stainless Stem & DiscEPDM Seat
Table EISO pad and square stem up to 12"

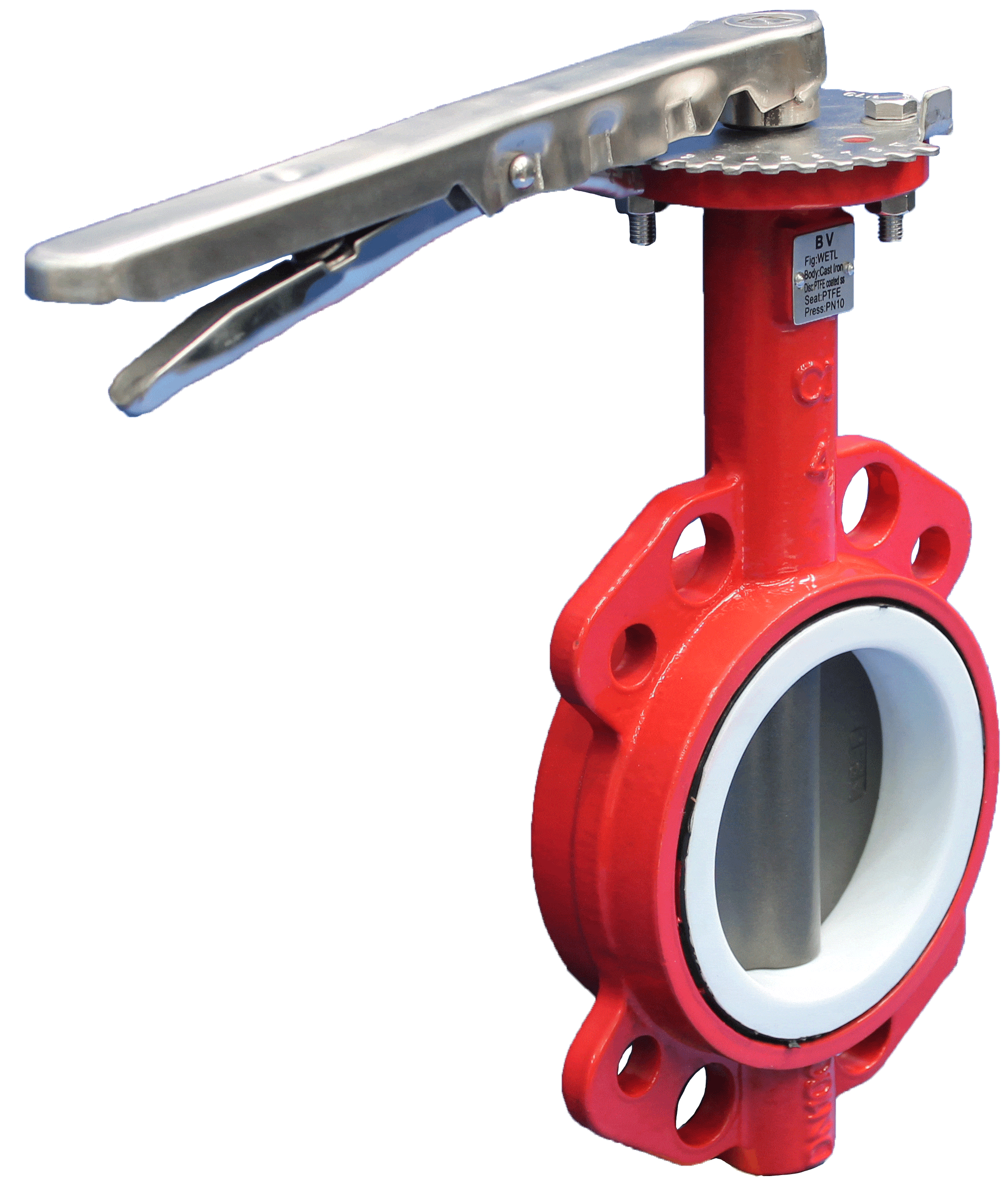

Cast Iron PTFE Wafer Lever Butterfly Valve
Body Material: Cast IronOperating Temperature: Up to 120cPressure Rating: 232 PSI (16 Bar)Size Options: 2" to 8"
PTFE Disc
Stainless Stem
PTFE Seat
Table D/E & ANSI 150
ISO pad and square stem up to 12"

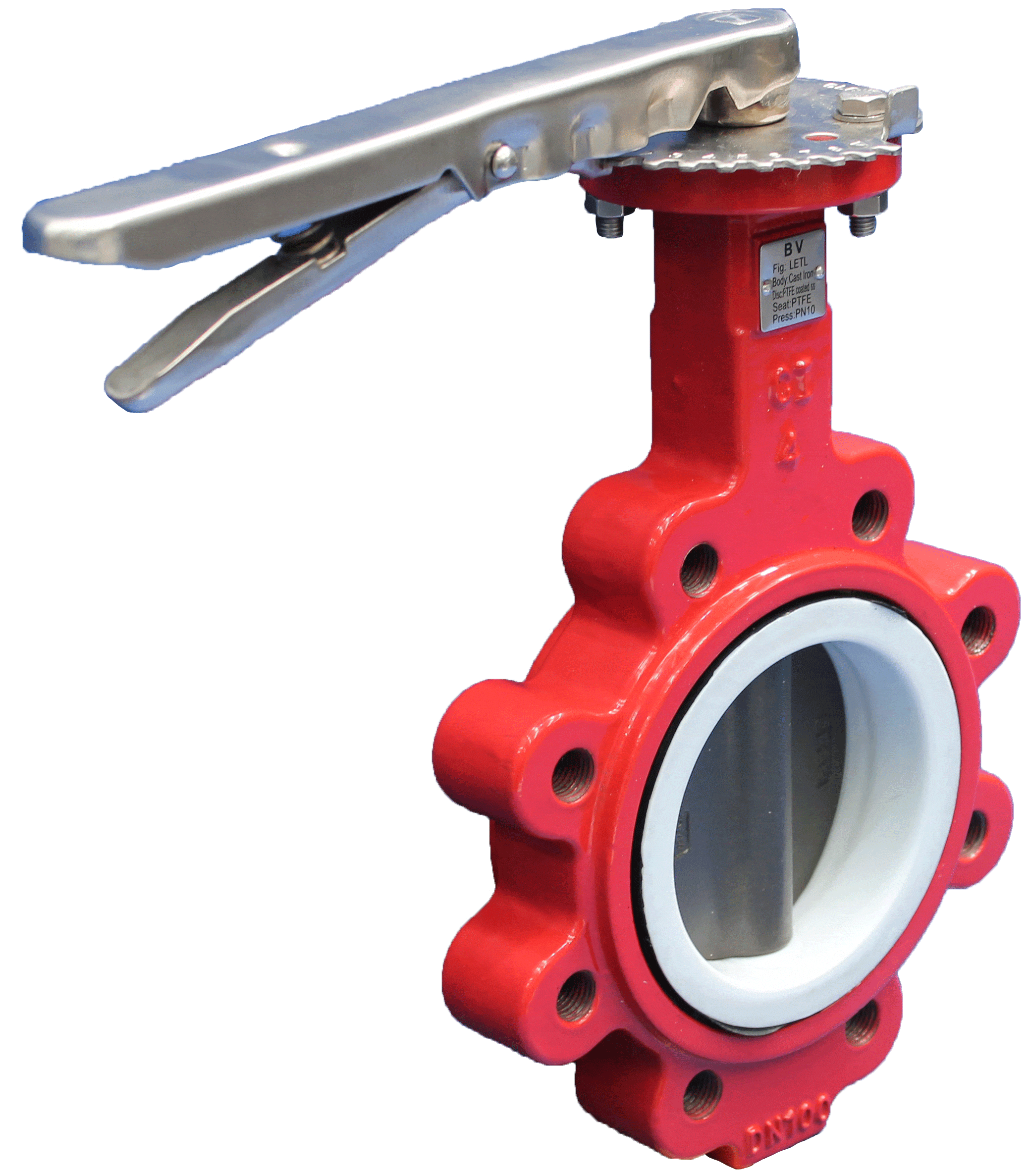

Cast Iron PTFE Lugged Lever Butterfly Valve
Body Material: Cast IronOperating Temperature: Up to 120cPressure Rating: 232 PSI (16 Bar)Size Options: 2" to 8"
PTFE Disc
Stainless Stem
PTFE DiscTable E
ISO Pad and Square Stem Up to 12"
Stainless EPDM Wafer Lever
Butterfly Valve
Body Material: Stainless SteelOperating Temperature: Up to 120cPressure Rating: 232 PSI (16 Bar)Size Options: 2" to 8"Stainless Stem & DiscEPDM Seat
Table D/E & ANSI 150
ISO pad and square stem up to 12"

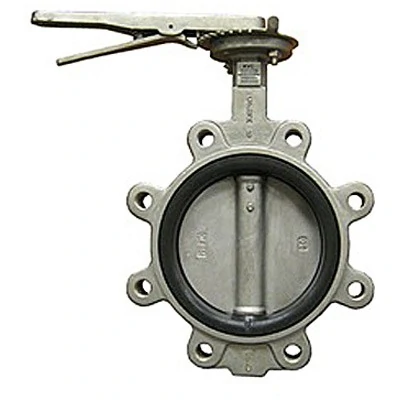

Stainless EPDM Lugged Lever Butterfly Valve
Body Material: Stainless SteelOperating Temperature: Up to 120cPressure Rating: 232 PSI (16 Bar)Size Options: 2" to 8"
Stainless Stem & Disc
EPDM Seat
Table E
ISO pad and square stem up to 12"
Flanged Valves
Stainless 150 Ball Valve
Body Material: Stainless SteelSeats: PTFE seats
Ball: Stainless SteelFlange: ANSI B16.5 class 150Face to Face: ANSI B16.10Blow-out proof stemFull boreLockable lever

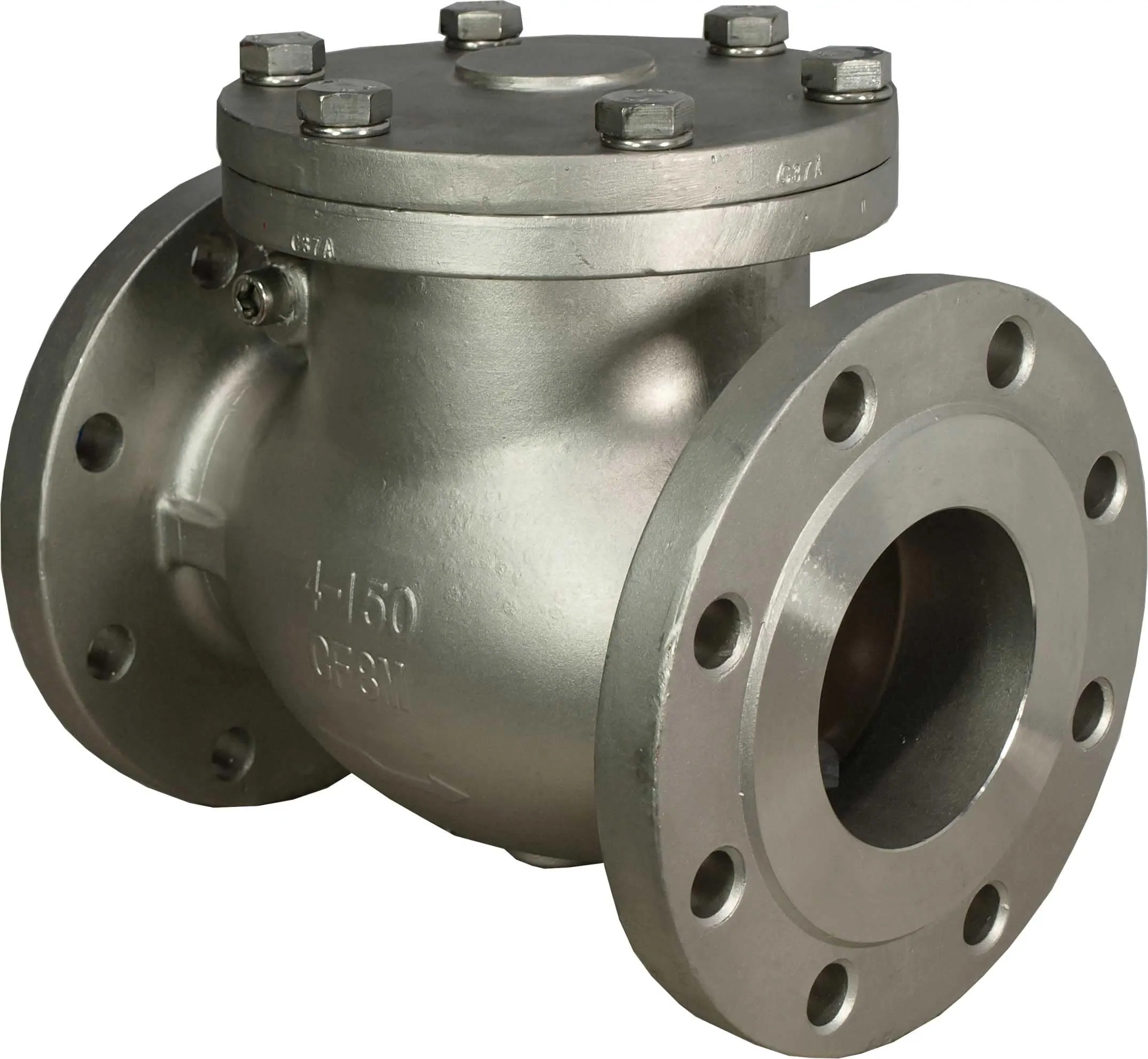

Stainless Class 150 Swing Check Valve
Body Material: Stainless Steel
Disc Material: Stainless Steel
Size Options: 2" to 12"
Flange: ANSI B16.5 Class 150Face to Face: ANSI B16.10Bolted bonnetFor Horizontal or Vertical linesSwing type disc

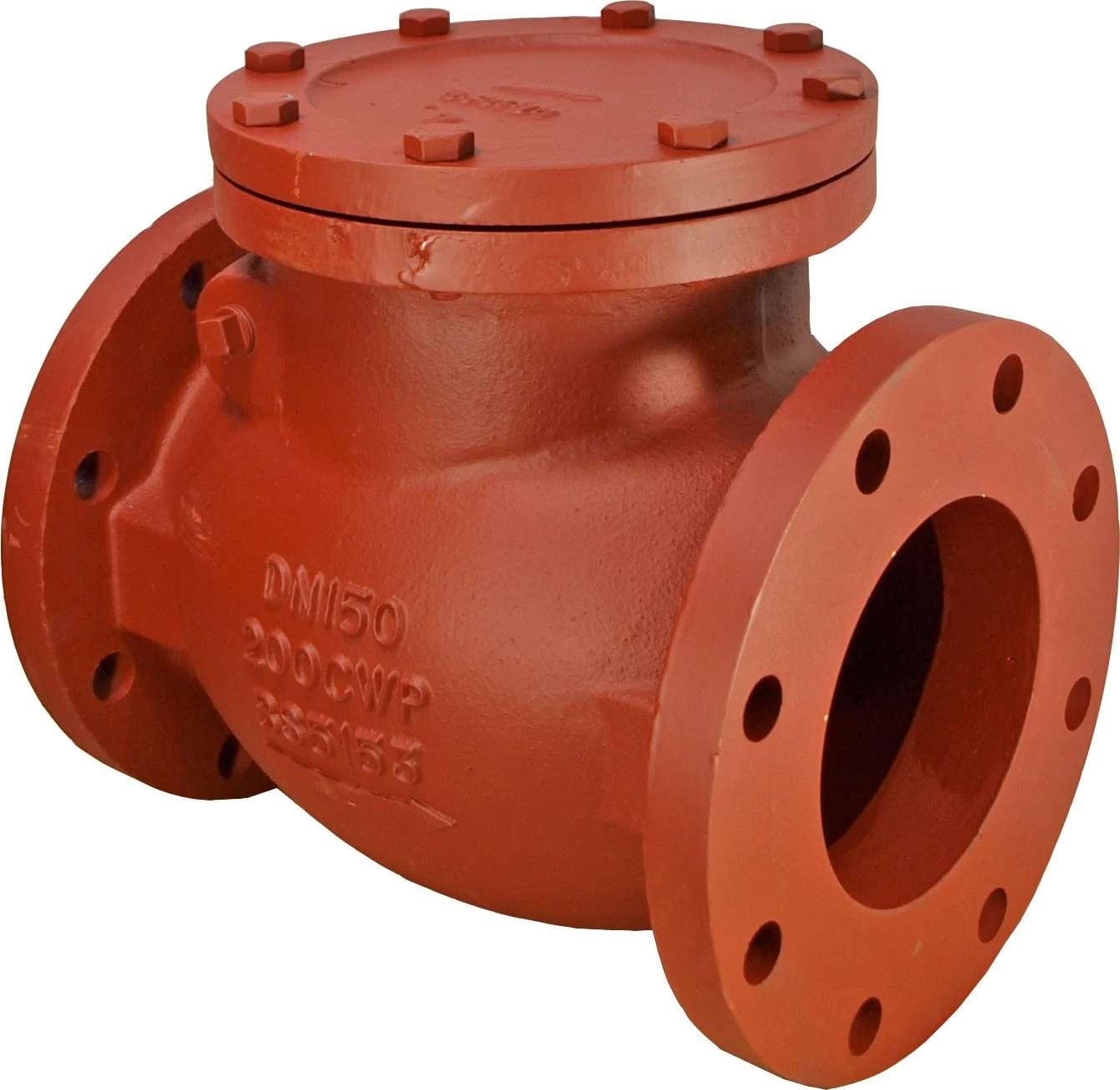

Cast Iron Class 150 Swing Check Valve
Body Material: Cast IronDisc Material: Cast IronSize Options: 2" to 12"Flange: ANSI B16.5 Class 150Face to Face: ANSI B16.10Bolted bonnetFor Horizontal or Vertical linesSwing type disc

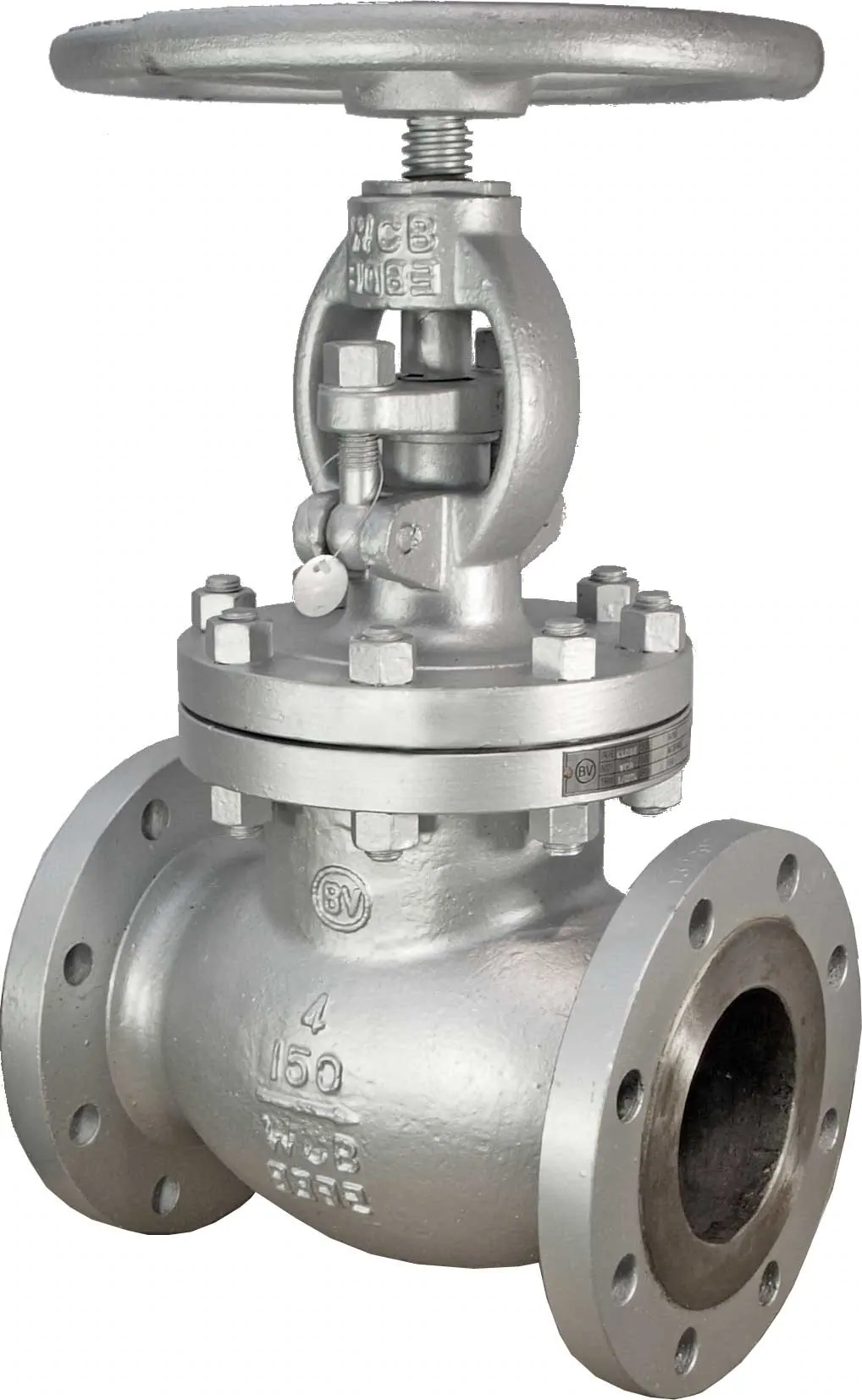

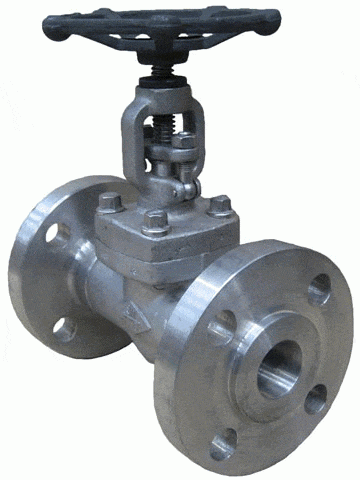

Cast Steel Class 150 Globe Valve
Body Material: Cast SteelSeats: Hard FacedSize Options: 1/2" to 8"
Flange: ANSI B16.5 Class 150Face to Face: ANSI B16.10Design & Manufacture: API 600 Cast Steel Stem & DiscPTFE Gasket & Packing
Cast Steel Bellow Seal Globe Valve
Body Material: Cast SteelSeats: Hard FacedSize Options: 1/2" to 8"Flange Dimensions: EN1092 PN 40Face to Face: EN558CR 13 Stem & DiscPTFE Gasket & Packing

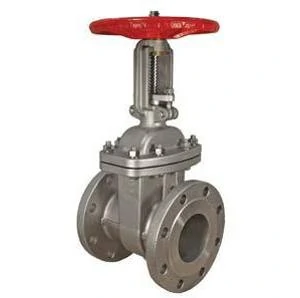

Stainless Class 150 Gate Valve
Body Material: Stainless SteelSeats: Hard FacedSize Options: 1/2" to 8"Flange Dimensions: ANSI B16.5 Class 150Stainless Stem & DiscPTFE Gasket & Packing
