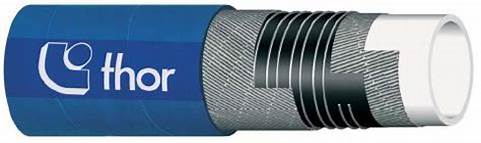

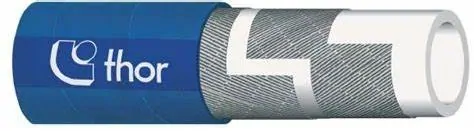

Thor Igienoil Blue
Food & Beverage Suction Hose
Flexible hose for conveying milk and milk by-products, animal and vegetable fatty food liquids. Used in oil mills, dairies and food industries in general. The hose is free from phthalates, BPA, PAH and ADI; furthermore, it is Reg. 1907/2006 (REACH) compliant.
SpecificationsTempreature: -20 °C +90 °C. Steam cleaning up to +130°C max Tube: White, food-grade Buttyl rubber Cover: Blue, smooth rubber, resistant to fats, abrasion & ozone
Reinforcement: High tensile textile plies and embedded helix wireWorking Pressure: 10 BarSizes: 1"-4"

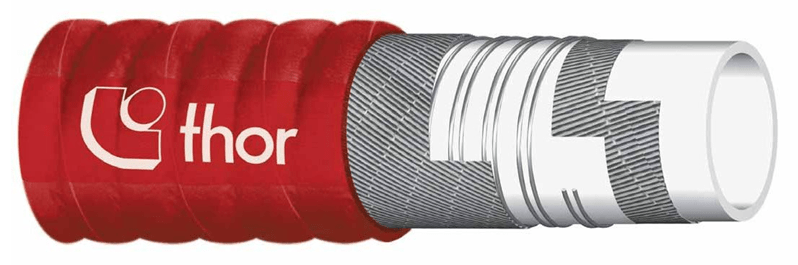

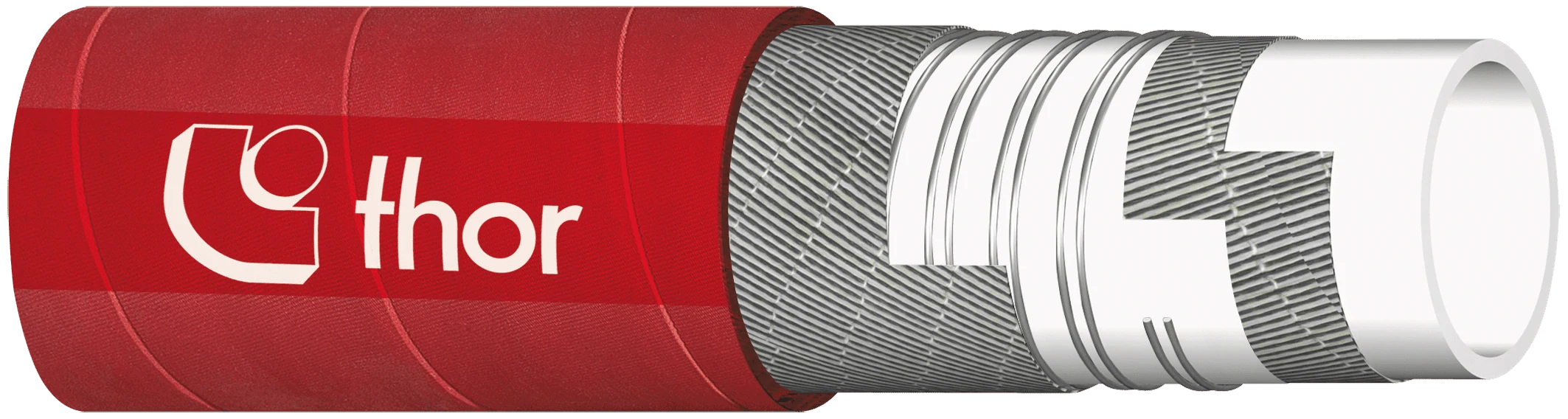

Thor 5 Star
Food & Beverage Suction Hose
Extremely flexible hose for suction & delivery of drinking water, wines, fruit juices, soft drinks & spirits with an alcoholic content up to 96%. Thanks to the low friction and abrasion resistant thermoplastic cover, the hose is easy to clean & to drag. The hose is free from phthalates, BPA, PAH and ADI, Reg. EC 1907/2006 (REACH) compliant.
SpecificationsTempreature: -30c to +120c Tube: White smooth food-grade IIR rubberCover: Red synthetic rubber with external UHMWPE filmReinforcement: Tensile textile with steel wire helix Working Pressure: 10 Bar (40 Bar Burst)Sizes: 1"-3"

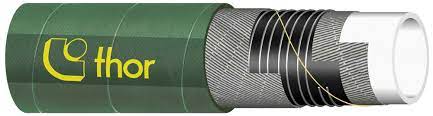

Thor Igienoil Crush Resistant
Crush Resistant Food & Beverage Suction Hose
Mandrel built food hose suitable for suction and delivery of vegetable and animal foodstuffs, oil, milk, yogurt, juice, soft drinks, cider, wine, beer, alcohol up to 98% It is indicated for use in breweries and distilleries. Thanks to its structure it recovers its shape after an accidental crush.
SpecificationsTempreature: -20c to +120c Tube: White smooth IIR rubber, odourless and taste-free Cover: Green, smooth rubber, abrasion & ozone resistant. Reinforcement: High tensile textile with embedded PET helix wireWorking Pressure: 10 Bar (30 bar Burst)Sizes: 1.5"-3"
.jpg)

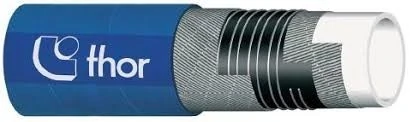

Thor Milk BPB
Milk Tanker & Unloading Hose
Mandrel built suction and delivery food hose for milk collecting trucks, easy handling is guaranteed by its high flexibility and lightweight. Its commonly used both on milk tankers & tanker unloading bays. Complying F.D.A. standards. Free from phthalates.
SpecificationsTempreature: -30 °C +80 °C. Steam cleaning up to +110 °C Tube: White Smooth NBR Cover: Blue, smooth rubber, abrasion & ozone resistant. Reinforcement: Synthetic textile Working Pressure: 6 Bar (18 Bar Burst)Sizes: 2"-4"

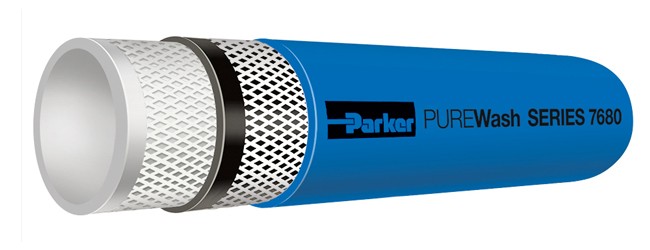

Parker Purewash
Washdown Hose
The Parker PureWash Series 7680 hose can be used in virtually every type of food and beverage processing plant. The tube is FDA compliant (not to be used in food transfer) and the cover is non-marking and also available in white for a cleaner look.
SpecificationsTempreature: -40c to +100c Tube: White EPDM Cover: Weather Resistant EPDM Reinforcement: Textile pilesWorking Pressure: 20 BarSizes: 1/2"-1"
.jpg)

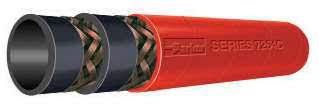

Parker Dragon Breath
Superheated Steam Hose
Parker's Series 7288 Dragon Breath Oil Resistant Steam Hose provides excellent service across a wide variety of steam applications. The hose is durable, crush resistant and kink resistant for easy handling and long service life. Good for use in almost all steam applications.
SpecificationsTempreature: -30 to 232cTube: Black EPDM
Cover: Red Weather & Oil Resistant Reinforcement: Two wire braids Working Pressure: 20 BarSizes: "1/2-1"
Plutone
Food & Beverage Suction Hose
Plutone PVC hose is a super flexible hose produced with pvc and reinforced with steel spiral, completely free of phthalates, resistant to several chemicals and to weather conditions.Ideal solution for suction and delivery of food liquids, beverages, fruit juices, wine and liquors with up to 20% alcohol.
SpecificationsTempreature: -10c to +60c Tube: Clear PVC Cover: Clear PVC Reinforcement:Steel Wire HelixWorking Pressure: 7 BarSizes: 1/2"-4"

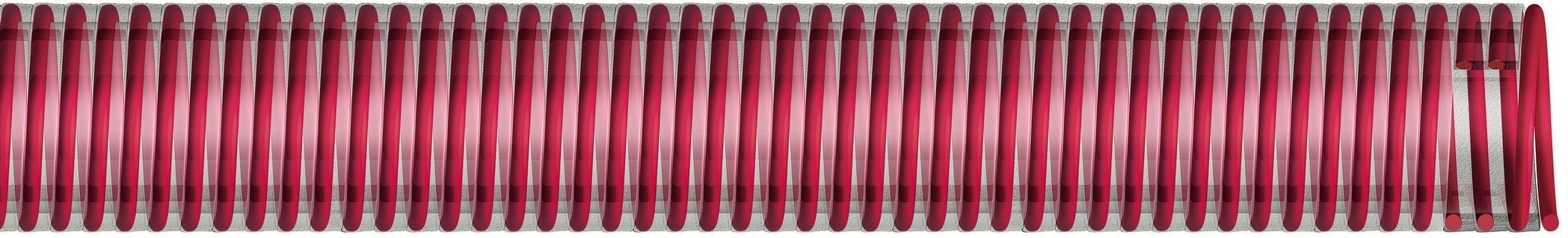

Clear Red
Wine Transfer Hose
Lightweight hose produced with pvc and reinforced with red helix, completely free of phthalates, resistant to several chemicals and to weather conditions.Ideal solution for suction and delivery of food liquids, beverages, fruit juices, wine and liquors with up to 20% alcohol concentration, often used for filling machines and dispensers.
SpecificationsTempreature: -10c to +60c Tube: Clear Red PVC
Cover: Clear Red PVC Reinforcement: Rigid Red PVC Helix Working Pressure: 7 BarSizes: 1- 4"
Eolo
Powder & Granule Hose
Eolo is used for light suction of food flours, powders, sugar and granules with a limited abrasion power. Suitable for fatty food. Smooth bore and anti static copper wire helix. Resistant to abrasion and flexion as well as to microbes and Hydrolysis, this hose features high mechanical properties.
SpecificationsTempreature: -10c to +60c Tube: Clear PVC Cover: Clear PVC Reinforcement:Rigid Yellow PVC HelixWorking Pressure: 4-7 BarSizes: 1/2"-4"
Vacpress
Wine Transfer Hose
Vacpress PVC hose is used for the suction & delivery of wine/ beverages, mineral water & juices. Vacpress is the premium PVC wine hose on the market & is an ideal solution for the the suction and delivery of food liquids, beverages, fruit juices, wine and liquors with up to 20% alcohol concentration, often used for filling machines and dispensers. Vacpress is a more robust solution to the plutone PVC hose.
SpecificationsTempreature: -10c to +60c Tube: Clear PVC
Cover: Clear PVC Reinforcement: Clear PVC with steel wire helix with polyester braidWorking Pressure: 10 BarSizes: 1- 4"
Milk Tanker
Dairy & Milk Tanker Hose
Food Grade suction hose used in a number of food processing applications and Industries such as dairy & on dairy tank road tankers.
SpecificationsTempreature: -10c to +60c Tube: Clear PVC Cover: Clear PVC Reinforcement:Rigid White PVC HelixWorking Pressure: 7 BarSizes: 1/2"-4"
.JPG)
CMP
Food Grade Multipurpose Hose
CMP is a pressure hose suitable for transfer of water, beverages, petrol, kerosene, oil and some petrochemicals. It is made from low-toxic food grade PVC compounds.
SpecificationsTempreature: -10c to +50c Tube: Clear PVC
Cover: Clear PVC Reinforcement: Rigid Red PVC Helix Working Pressure: 15 BarSizes: 1/4- 2"
