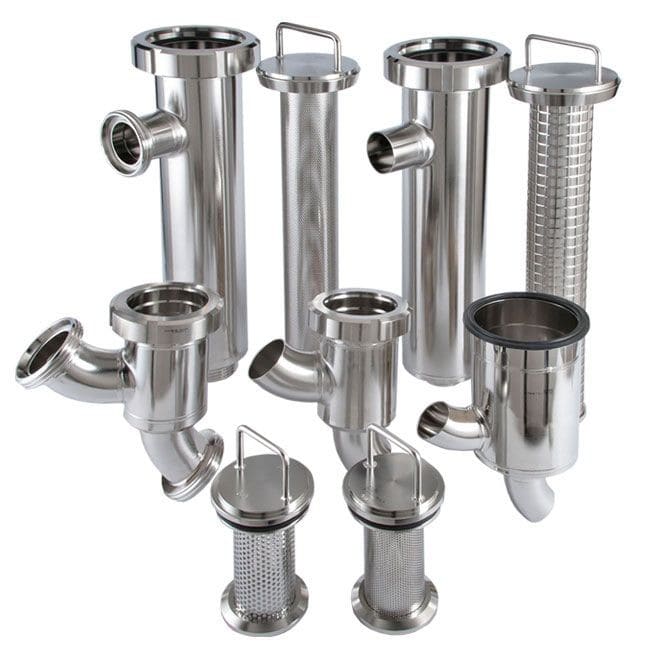

Chadstone In-Line Filter Housing
Chadstone Hygienic Filters are available in 3 different designs, Y-type, top entry and side entry. All Bodies manufactured from 316L stainless steel. These type of filters have a wide range of applications in the food-processing, cosmetics and some chemical industries as well as in auxiliary services of the pharmaceutical industry. They are often used to filter particles capable of damaging pumps and other equipment.Specifications:*Inlet/Outlet Sizes: DN25 (1") to DN100 (4")*End Connections: Clamp or Weld End to ASME BPE*Opegrating Temperature: Up to 120°C*Maximum Working Pressure: Up to 10 Bar
.jpg)
Chadstone Hygienic Duplex Filter Housing
Chadstone Hygienic Duplex Filter Assembly consisting of four Hygienic Butterfly Valves, Pressure Gauge and two Hygienic Angular Filters. Stainless Steel AISI 316L, clamp end connections to ASME BPE. These type of filters are generally used when multiple lines are run at the same time & isolation for either product change over or CIP cleaning is required on one line allowing for isolation. Like the simplex model a range of filter elements are available each fully customisable.Specifications:*Inlet/Outlet Sizes: DN25 (1") to DN100 (4")*End Connections: Clamp or Weld End to ASME BPE*Medium Temperature: Up to 120°C*Maximum Working Pressure: Up to 10 Bar
.jpg)

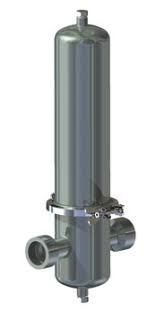

Parker HBA Series FDA Filter Housing
The HBA series filter housing is a single element filter housing designed specifically for processes requiring sanitary air and gas. Specially dersigned for the food and beverage industry, the HBA series housings are designed to maximise flow and minimise pressure drop. Available in 3 different vessel classes:Standard (CE), ATEX & High Pressure.Specifications:*Inlet/Outlet Sizes: DN38 (1.5")*End Connections: Clamp or Weld End to ASME BPE*Opegrating Temperature: Up to 150°C*Maximum Working Pressure: Up to 10 Bar
.jpg)

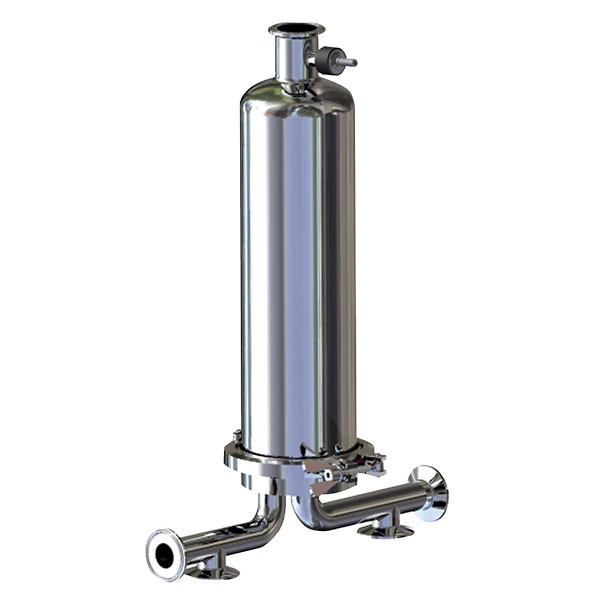

Parker HSL Series FDA Filter Housing
The HSL is a single element filter housing designed specifically for the food and beverage and pharmaceutical industries. Available in 3 different vessel classes:Standard (CE), ATEX & High Pressure.Specifications:*Inlet/Outlet Sizes: DN25 (1") to DN100 (4")*End Connections: Clamp or Weld End to ASME BPE*Medium Temperature: Up to 150°C*Maximum Working Pressure: Up to 10 Bar
.jpg)

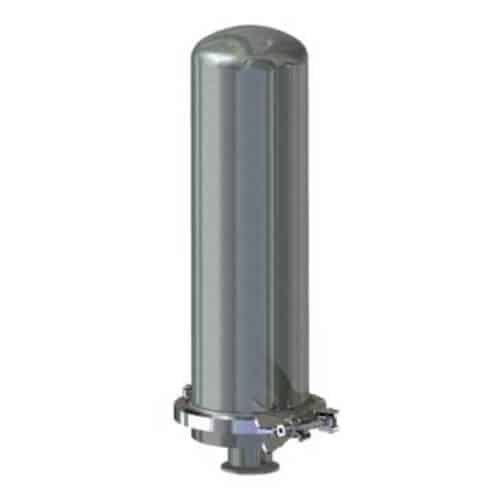

Parker HSV Series Vent Filter Housing
The HSV series filter housing is a vent filter housing designed specially for the food & beverage industry. The direct connection to tank boss allows housing to be self-supportive. Made from corrosion resistant 316L stainless steel.Specifications:*Inlet/Outlet Sizes: DN38 (1.5") to DN50 (2")*End Connections: Clamp or Weld End to ASME BPE*Opegrating Temperature: Up to 150°C
.jpg)
Parker PHP Series FDA Filter Housing
The PHP housing range is specifically designed for liquid applications in beer, wine & bottled water. They will support liquid filter cartridges of nominal length 10¨ to 40¨. AISI 316L grade stainless steel is used for all wetted parts assuring corrosion resistance and durability. All gasket materials meet FDA regulatory requirements and Food Grade EC 1935/2004 compliance. Sanitary crevice free design and mirror polished surfaces guarantee enhanced cleanability.Specifications:*Inlet/Outlet Sizes: DN25 (1") to DN100 (4")*End Connections: Clamp or Weld End to ASME BPE*Medium Temperature: Up to 150°C*Maximum Working Pressure: Up to 10 Bar

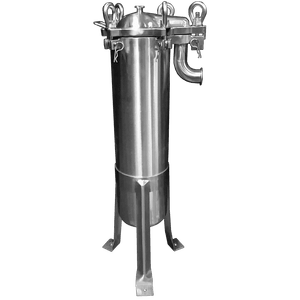

Chadstone Hygienic Bag Filter Housing
Chadstone sanitary bag filters are an excellent way to perform depth filtration and widely used for pre-filtration in the beverage, dairy and other food and pharmaceutical applications. Typically used upstream of cartridge and membrane applications and are cost effective and easy to operate. A range of baskets & bags are available each customisable to each individual application.Specifications:*Available in Sizes: DN25 (1") to DN50 (2")*End Connections: Tri Clover*Medium Temperature: Up to 120°C*Maximum Working Pressure: Up to 10 Bar
.jpg)

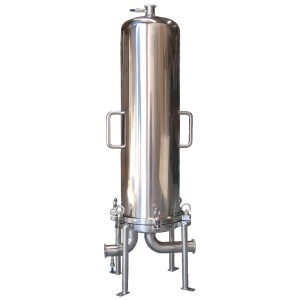

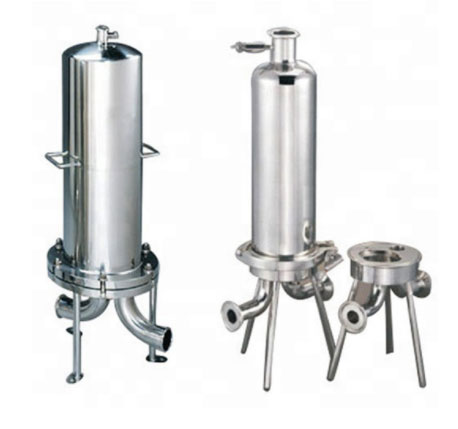

Donaldson Hygienic Cartridge Filter Housing
The PHP housing range is specifically designed for liquid applications in beer, wine & bottled water. The PHP liquid filter housing range is available for 1 to 30 round cartridges. They will support liquid filter cartridges of nominal length 10¨ to 40¨. AISI 316L grade stainless steel is used for all wetted parts assuring corrosion resistance and durability. All gasket materials meet FDA regulatory requirements and Food Grade EC 1935/2004 compliance. Sanitary crevice free design and mirror polished surfaces guarantee enhanced cleanability.Specifications:*Available in Sizes: DN25 (1") to DN76 (3")*End Connections: Tri Clover ,Weld or ANSI Flange*Maximum Working Pressure: Up to 10 Bar*Liquid Capacity Range: 1,362 Lpm*FDA CFR Code of Federal Regulations Title 21 framework regulation
Donaldson High Pressure Filter Housing
Donaldson HD high pressure filter housings are designed for the purification of compressed air and gases in industrial operations. HD high pressure housings offer low differential pressure at high flow rates. A wide variety of filter elements are available to meet a broad range of application requirements.Specifications:*Available in Sizes: DN06 (1/4") to DN50 (2")*End Connections: Tri Clover*Medium Temperature: Up to 80°C*Maximum Working Pressure: Up to 40 Bar

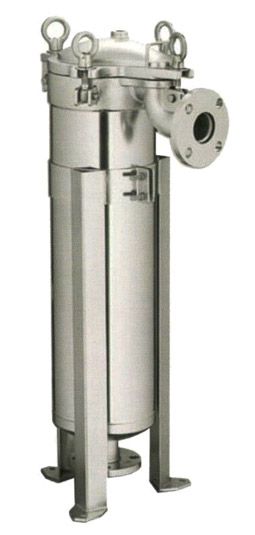

Chadstone Industrial Bag Filter Housing
Chadstone bag filter housings are an easy to use and cost effective product for the filtration of liquids containing higher concentrations of coarse solids. They are particularly beneficial when handling batches of various liquids. Incorporates the heavy duty swing-bolt closure designed for easy bag replacement and is suitable for system pressure up to 10 Bar. A perforated stainless steel basket located inside the housing supports and protects the filter bag, ensuring optimum loading.Specifications:*Available in Sizes: DN25 (1") to DN50 (2")*End Connections: BSP or ANSI Flange*Medium Temperature: Up to 120°C*Maximum Working Pressure: Up to 10 Bar
.jpg)
Donaldson PP-Q Hygienic Element
PP-Q filter elements deliver valuable performance for a wide range of applications across many industries. These elements are manufactured in a white room and all materials are in compliance with FDA CFR Title 21 and meet USP Class VI plastics biological reactivity tests. These elements provide tremendous value by reducing the amount of particulate in process lines and protecting valuable production equipment. Their pleated construction offers exponentially more surface area than melt blown elements, which translates to more dirt holding capacity and fewer changeouts.Features*100% polypropylene construction provides a wide range of chemical compatibility*Gradient, fixed pore structure supplies increased dirt holding capacity and resistance to unloading under high differential pressureApplications*Bottled Water *Beer *Wine *Spirits *Cosmetics*Syrups *Caustics *Syrups *Caustics
.jpg)
Donaldson P100-Q Hygienic Element
PP100-Q filter elements deliver absolute performance for a wide a range of applications across many industries. These elements are manufactured in a white room and all materials are in compliance with FDA CFR Title 21 and meet USP Class VI plastics biological reactivity tests. These elements provide tremendous value by reducing the amount of particulate in process lines and protecting valuable production equipment. Their pleated construction offers exponentially more surface area than melt blown elements, which translates to more dirt holding capacity and fewer changeouts. Features*100% polypropylene construction provides a wide range of chemical compatibility*Gradient, fixed pore structure to increase dirt holding capacity and resistance to unloading under high differential pressure*Rigid, molded cage for greater structural integrityApplications*Bottled Water *Beer *Wine *Spirits *Cosmetics *Syrups *Caustics
.jpg)
Donaldson PES-BN Hygienic Element
The LifeTec™ PES-BN A filter element provides high filtration performance, stability and service life for final filtration and microbial stabilization of highly colloidal liquids. The outstanding performance of the PES-BN A filter element is based on its state-of-the-art filtration media. The hydrophilic Polyethersulfone membrane distinguishes itself by having a highly asymmetrically designed pore structure. The pore size steadily decreases towards the center of the medium, resulting in a highly porous structure. All components meet EU and US requirements for Food Contact Use. Features*Absolute grade rating of 0.45 micron *Highly asymmetrical membrane design *High mechanical and thermal stability Applications*Beer mix *Beer *Wine *Spirits *Deionized water *Bottled Water *Soft Drinks *Process Water
Donaldson PES-WN Hygienic Element
The Donaldson LifeTec™ PES-WN filter element provides sterile filtration and microbial stabilization of food ingredients and beverages. The outstanding performance of the PES-WN filter element is based on its state-of-the-art filtration media. The hydrophilic polyethersulfone membrane distinguishes itself by having an asymmetrically designed pore structure. This extremely durable design maintains consistent porosity and impurity retention throughout its service life without shedding or unloading contaminants.Features*Nominal particulate retention rates at 0.45 to 30 µm *100% polypropylene construction*Meets U.S. FDA, CFR Title 21 and 1935/2004/EC requirements for food and beverageApplications*Soft Drinks *Mineral Water *Alcohols *Oils *Cosmetics
.jpg)

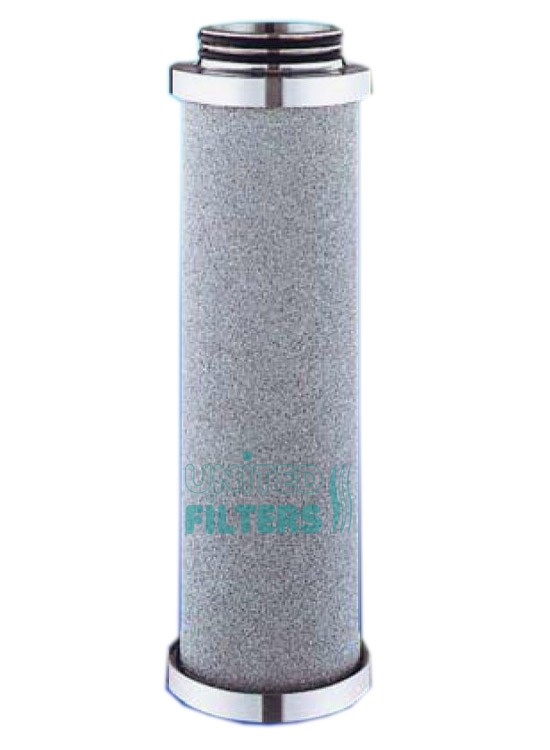

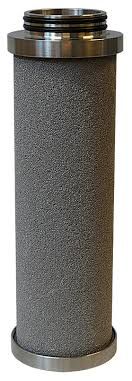

Donaldson P-GS Steam Element
The Donaldson P-GS filter elements meet virtually all purification requirements in steam filtration applications. Its heavy duty sintered stainless steel design allows for a maximum differential pressure up to 5 bar / 72 psi and an operating temperature range of -51° C to 204° C (with optional Fluoraz®* o-rings). P-GS filter elements are regenerative, allowing for longer filter life and reduced operating. Regeneration processes include back-flushing, ultrasonic cleaning, and solvent cleaning with hydrogen peroxide and other chemicals. Features*High dirt holding capacity at low differential pressure and high flow rate*Excellent material resistance towards Steam and aggressive media*5 micron element exceeds 3-A guidelines for the production of culinary steamApplications *Sterilize-in-Place (SIP) *Pasteurization *Heat ExchanRV/valve protection *Direct injection cooking
.jpg)
Donaldson ACB Water Element
The ACB carbon block elements aid in the removal treatment chemicals, like chlorine, from water. If left in the process water, chlorine and other chemicals can impart unwanted tastes and odors in the final product. The block construction of these elements mitigates the possibility of water channels forming and decreases the number of carbon fines that would otherwise release from loose carbon filters. Features*Block construction prevents channeling, fluidizing and bypass*5 micron filtration*Minimal release of carbon fines*Block construction prevents channeling, fluidizing and bypassApplications*Water & waste water *Chemicals *RO pre-filters
.jpg)

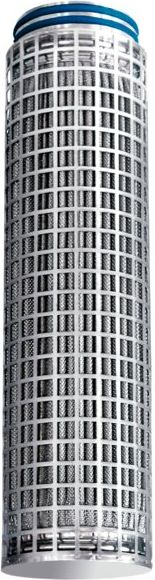

Donaldson PES-WN Hygienic Element
The Donaldson LifeTec™ P-GSL N is a regenerable, pleated, stainless steel filter element that captures contaminants such as particles, abrasion of valves and sealings, and rust. The P-GSL N can be used in higher capacity applications where low pressure drop and reduced space are critical. All components meet the USA requirements for Food Contact Use in accordance with the Code of Federal Regulations (CFR) Title 21, and the EU requirements for Food Contact Use according to 1935/2004/EC.Features*Retention rate down to 0.01 microns in air/saturated steam*Pleated, stainless steel media
*Regenerable by back-flushing or ultrasonic cleaning*Higher flow rates at a low pressure dropApplications*Sterilize-in-Place (SIP) *Pasteurization *Heat Exchan PRV/valve protection *Direct injection cooking *Sanitizing

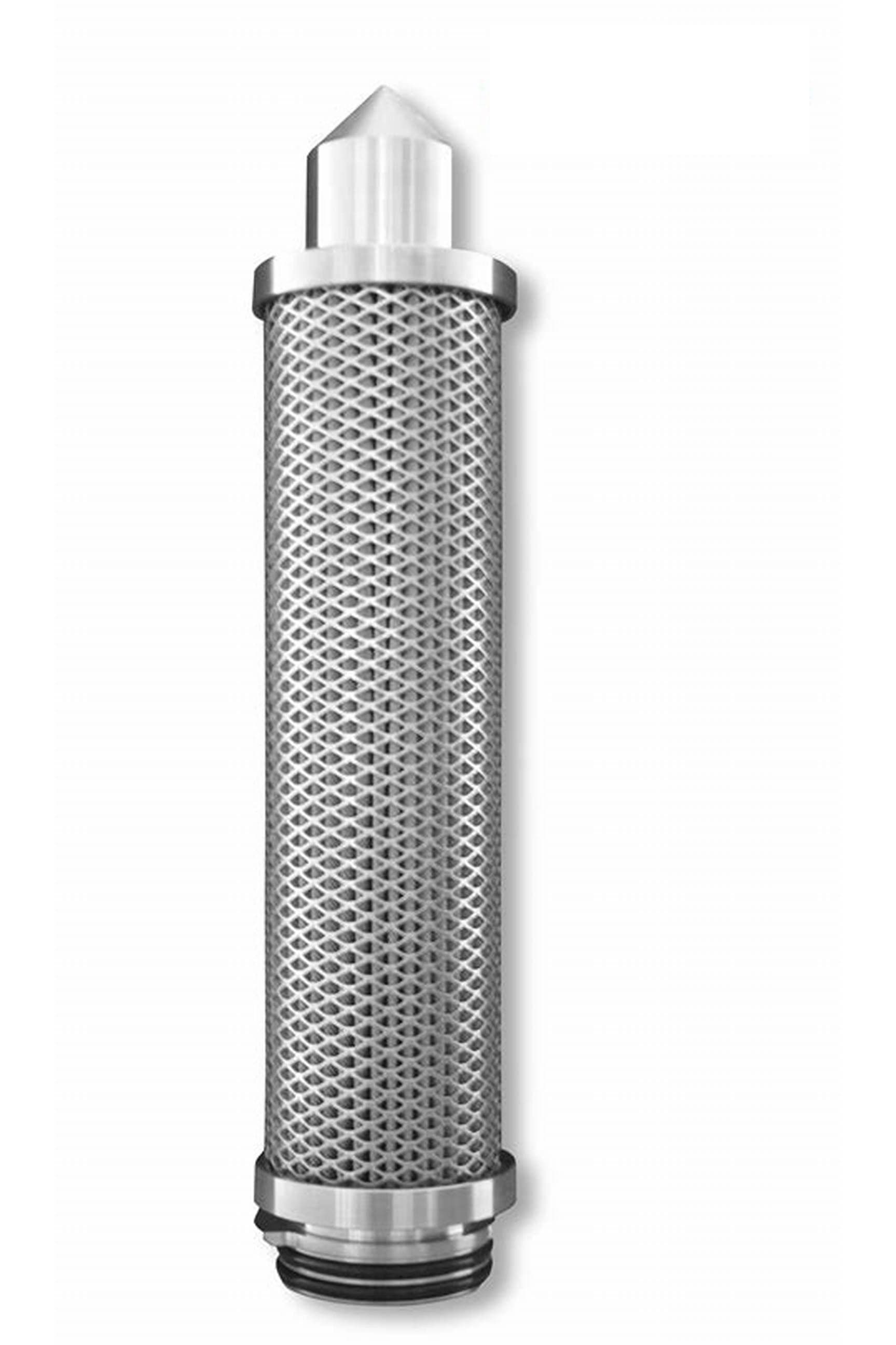

Donaldson P-GS Steam Element
The Donaldson P-GS VE filter elements meet virtually all purification requirements in steam filtration applications. Its heavy duty sintered stainless steel design allows for a maximum differential pressure up to 5 bar / 72 psi and an operating temperature range of -51° C / -60 to 204° C (with optional Fluoraz®* o-rings). P-GS VE filter elements are regenerative, allowing for longer filter life and reduced operating. Regeneration processes include back-flushing, ultrasonic cleaning, and solvent cleaning with hydrogen peroxide and other chemicals.Features*High dirt holding capacity at low differential pressure and high flow rate*Excellent material resistance towards Steam and aggressive media*5 micron element exceeds 3-A guidelines for the production of culinary steamApplications *Sterilize-in-Place (SIP) *Pasteurization *Heat Exchan PRV/valve protection *Direct injection cooking *Sanitizing
Donaldson ACB Water Element
The P-GS N filter consists of a regenerable filter matrix made from pleated steel which ensures high particle and dirt retention, very good flow rate as well as low differential pressure. The heavy-duty construction of the P-GS N filter is designed to withstand a maximum differential pressure up to 5 bar / 72 psi with a flow from the outside to the inside. The P-GS N offers retention rates of 1, 5 and 25 microns and covers a temperature range from –20° C to +150° C Features*High dirt holding capacity at low differential pressure and high flow rate*Excellent material resistance towards steam and aggressive media*Down to 0.01 micron in saturated steam*Welded version approved for Food Contact Use acc. to CFR Title 21 & 1935/2004/ECApplications*Sterilize-in-Place (SIP) *Pasteurization *Heat Exchan PRV/valve protection *Direct injection cooking *Sanitizing

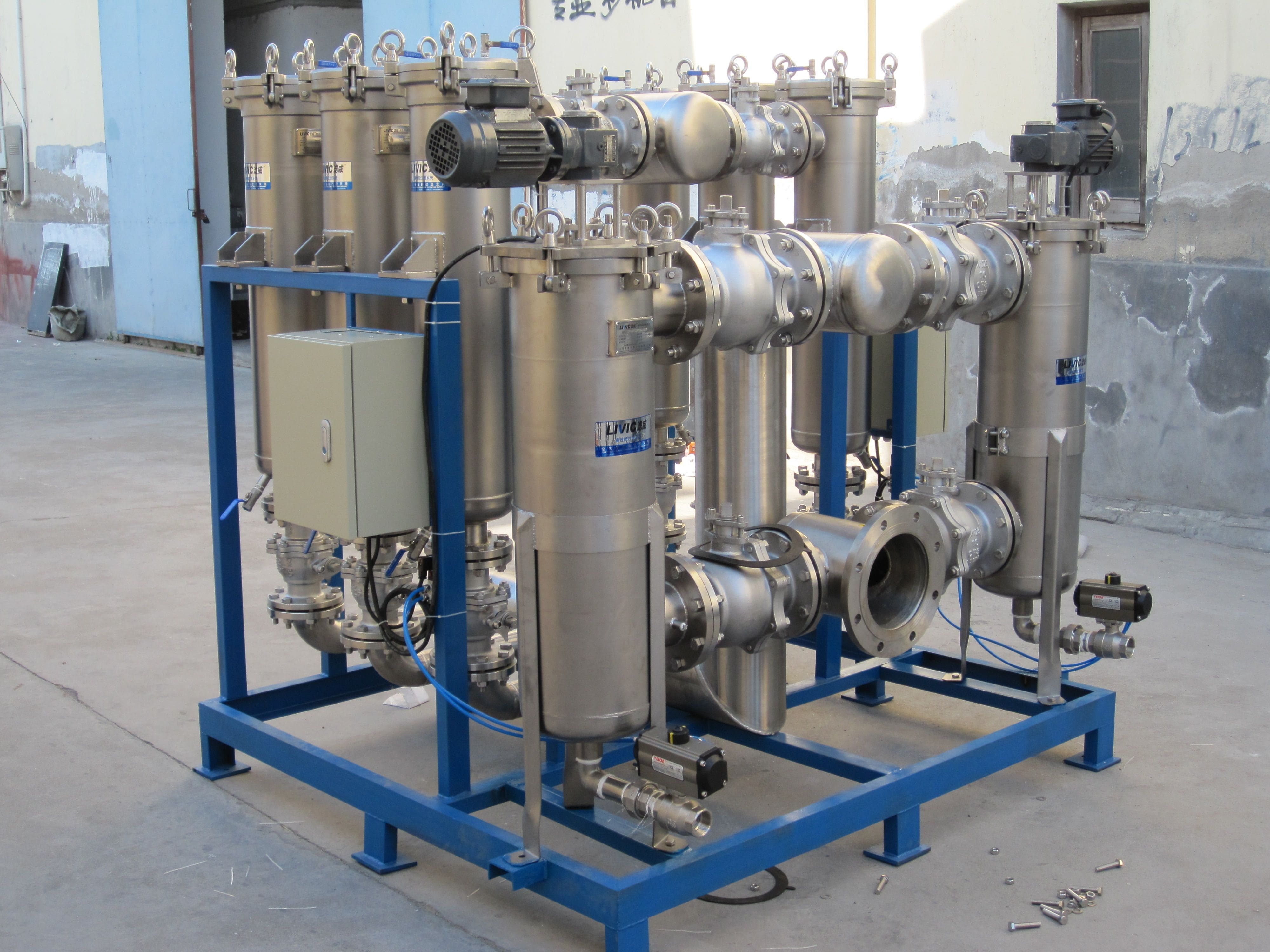

Industrial Filtration Skids
Our industrial skid -mounted systems can include tanks, valving, instrumentation, pumps, pulse dampeners, piping manifolds and complete control panels. The skids can be stainless, powder-coated metal or fabricated polypropylene platforms. The footprint is small, and the installation is fast and quick. Each skid is fully cutomisable from filtration method to size of filters.

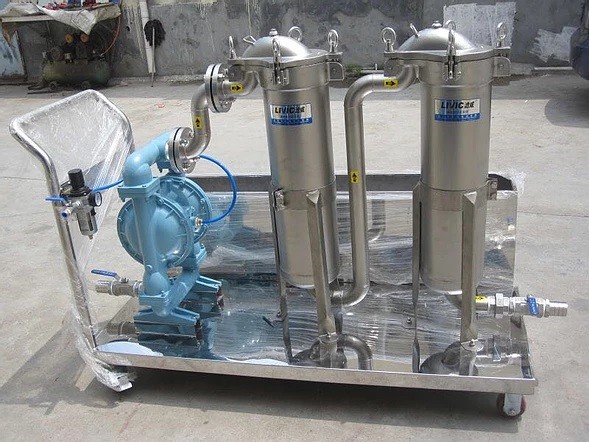

Mobile Filtration Skids
With deep experience & knowledge in filtration we specialise in mobile filtration applications. From simple to duplex filters our mobile solutions can be designed & built to any filtration application. As well as the design & fabrication we also provide commissioning & ongoing service to all our units.
Custom Hygienic Filtration Skids
We know hygienic filtration technology inside and out. Our team will take the time to learn about the unique challenges of your operation. In turn, our analysis will allow us to determine the optimal filter specifications that will integrate with your process to enhance efficiency, output and profits. Our comprehensive line of filter technology includes process filters engineered for the specific needs of your application.
